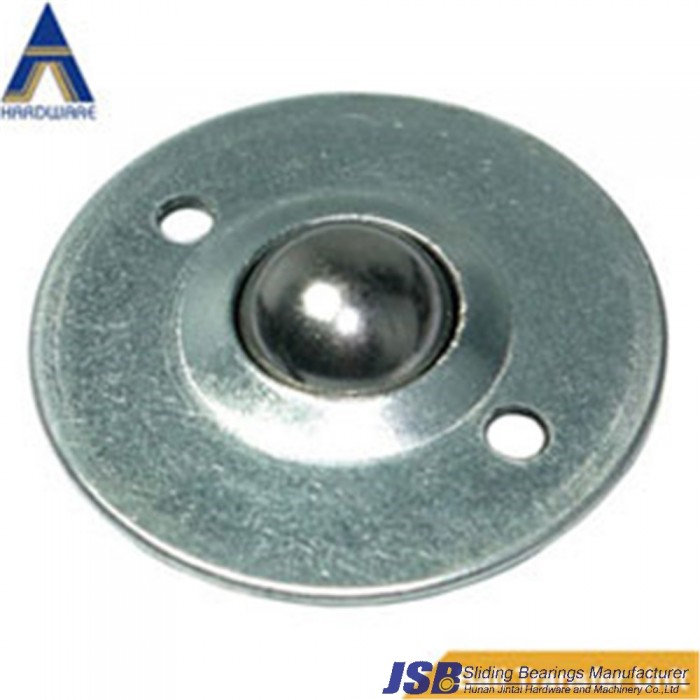

BTU for medium duty bushing
Brand JSB
Type medium
All kinds of transfer ball bearings
Materials in Carbon steel,SS,Nylon availableFor light duty,medium duty,heavy duty
Introduction
Ball transfer units
1)are omni-directional load-bearing spherical balls mounted inside a restraining fixture. They are identical in principle to a ball computer mouse upside-down, or a trackball, except there is an array of them side-by-side.
2)Typically the design involves a single large ball supported by smaller ball bearings.They are commonly used in an inverted ball up position where objects are quickly moved across an array of units, known as a ball transfer table, a type of conveyor system. This permits manual transfer to and from machines and between different sections of another conveyor system.
3)They are used in airports for luggage delivery, or in industry as part of manufacturing systems. Prior to the invention of the ball transfer unit, first patented by Autoset Production Ltd in 1958, these applications were solved by the use of inverted casters.However, casters recognize a trail, meaning that the wheels had to align before directional change could be achieved.Ball transfer units can also be used non-inverted ball down position as a type of caster, however this use is restricted by load-bearing limitations and the type of floor.
4)Manufacturers have addressed this problem with ball transfer units incorporating re-circulating ball principles, however the inverted position is still the most common application and the least problematic.
List of CY series-light & medium duty
|
Model No. |
Ball size |
Loading capacity Maximum/Breaking |
1) |
CY-15A |
15MM |
10KG/15KG |
2) |
CY-18A |
18MM |
20KG/25KG |
3) |
CY-25A |
25.4MM |
25KG/30KG |
4) |
CY-30A |
30MM |
40KG/50KG |
5) |
CY-38A |
38MM |
60KG/80KG |
|
|
|
|
6) |
CY-16B |
16MM |
10KG/15KG |
7) |
CY-25B |
25MM |
25KG/30KG |
8) |
CY-30B |
30MM |
35KG/40KG |
9) |
CY-38B |
38MM |
45KG/55KG |
|
|
|
|
10) |
CY-8H |
8MM |
3KG/5KG |
11) |
CY-15H |
15MM |
15KG/25KG |
12) |
CY-22H |
22MM |
40KG/55KG |
13) |
CY-30H |
30MM |
70KG/85KG |
List of SP series – heavy duty
Model No. |
Ball size |
Loading capacityMaximum/Breaking |
SP-8 |
8MM |
8KG/15KG |
SP-12 |
12MM |
25KG/30KG |
SP-15 |
15.875MM |
40KG/50KG |
SP-22 |
22.23MM |
140KG/160KG |
SP-25 |
25.4MM |
180KG/200KG |
SP-30 |
30.16MM |
250KG/300KG |
SP-45 |
45MM |
450KG/500KG |
SP-60 |
60MM |
800KG/1200KG |
SP-76 |
76MM |
2000KG/2500KG |
SP-90 |
90MM |
3000KG/3500KG |
|
|
|
SP-8FL |
8MM |
8KG/15KG |
SP-15FL |
15.875MM |
40KG/45KG |
SP-22FL |
22.23MM |
140KG/160KG |
SP-30FL |
30.16MM |
200KG/230KG |
SP-45FL |
45MM |
400KG/450KG |
How to choose a ball transfer unit?
- Maximum Loading Capacity = (weight of article)/3 or 9
- Maximum Spacing = (article width)/3.5; (article length)/3.5
How to arranging and installing ball transfer units?
- There are different arranging ways to fit for different moving requirements:
- There are different models of BTU fo choosing:
Applications
- Typical application in production lines:
- Typical application in goods handling:
Ball transfer units table in Dubai International Airport
Ball transfer units table in Dubai International Airport
How to delivery?
- Gross weight lower than 50kgs, we suggest delivery by courier like DHL, TNT or others
- Gross weight between 50kgs and 120kgs, we suggest delivery by aircargo
- Gross weight over 120kgs, it can be delivered by sea shipping
